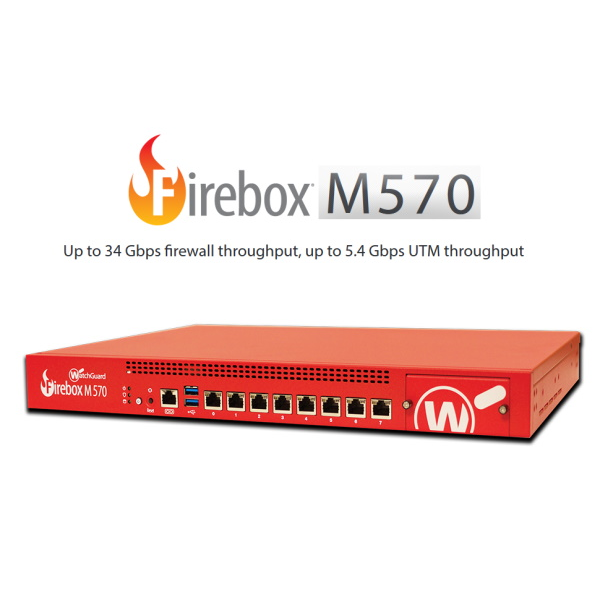

WatchGuard Firebox M570

WatchGuard Firebox M570

Brand: WatchGuard
Category: Firewall

Đánh giá của chúng tôi

Đánh giá dựa trên nhận định của chuyên gia

  • Hiệu năng 5 / 10

Midsize business and distributed enterprise


STTTính năngWatchguard Firebox M570
Firewall26.6 Gbps
Firewall (IMIX)7.6 Gbps
VPN (UDP 1518)5.8 Gbps
VPN (IMIX)2.0 Mbps
HTTPS (IPS enabled)3.4 Gbps
AntiVirus5.4 Gbps
IPS (fast/full scan)8.0/4.8 Gbps
UTM (fast/full scan)4.4/3.5 Gbps
Interfaces 10/100/1000*8 (optional modules available)
I/O interfaces1 SRL/2 USB
Concurrent connections8,300,000
Concurrent connections (proxy)710,000
New connections per second115,000
WSM licenses (incl)4
TDR Host Sensors included250
Authenticated users limitUnrestricted
Branch Office VPN500
Mobile VPN500
FirewallStateful packet inspection, deep packet inspection, proxy firewall
Application proxiesHTTP, HTTPS, FTP, DNS, TCP/UDP, POP3, SMTP, IMAPS, POP3S and Explicit Proxy
Threat protectionDoS attacks, fragmented & malformed packets, blended threats & more
VoIPH.323, SIP, call setup and session security
Filtering optionsBrowser Safe Search, Google for Business
Cloud providersAWS (Static/Dynamic), Azure (Static/Dynamic)
EncryptionAES 256-128 bit, 3DES, DES
IPSecSHA-2, IKEv1/v2, IKE pre-shared key, 3rd party cert, Suite B
Single sign-onWindows, macOS, mobile operating systems, RADIUS, SAML 2.0
AuthenticationRADIUS, LDAP, Windows Active Directory, VASCO, RSA SecurID, internal database, SAML 2.0, SMS Passcode
Logging and notificationsWatchGuard, Syslog, SNMP v2/v3
User interfacesCentralized console (WSM), Web UI, scriptable CLI
ReportingWatchGuard Dimension includes over 100 pre-defined reports, executive summary and visibility tools
SecurityCC EAL4+ Pending: ICSA Firewall, ICSA IPSec VPN, FIPS 140-2
SafetyNRTL/C, CB
NetworkIPv6 Ready Gold (routing)
Hazardous substance controlWEEE, RoHS, REACH
RoutingStatic, Dynamic (BGP4, OSPF, RIP v1/v2), SD-WAN Dynamic Path Selection
High AvailabilityActive/passive, active/active with load balancing
QoS8 priority queues, DiffServ, modified strict queuing
IP address assignmentStatic, DHCP (server, client, relay), PPPoE, DynDNS
NATStatic, dynamic, 1:1, IPSec traversal, policy-based, Virtual IP for server load balancing
Link aggregation802.3ad dynamic, static, active/backup
Other featuresPort Independence, Multi-WAN failover and load balancing, server load balancing, host header redirection, USB modem as a dedicated interface


Product Total Security Suite Basic Security Suite
Intrusion Prevention Service (IPS)
App Control
Gateway AntiVirus
Reputation Enabled Defense (RED)
Network Discovery
APT Blocker
Data Loss Protection (DLP)
Dimension Command
Threat Detection & Response
Support Gold (24×7) Standard (24×7)


System Performance

Firewall throughput 26.6 Gbps
Firewall IMIX 7.6 Gbps
Antivirus Throughput 5.4 Gbps
Concurrent connections 8,300,000
New connections/sec 115,000
IPS throughput 8.0 / 4.8 Gbps
VPN AES-128 Throughput 5.8 Gbps
VLANs 500
WSM licenses (incl) 4
TDR Host Sensors included 250
Authenticated users limit Unrestricted
Branch Office VPN 500
Mobile VPN 500

Physical interfaces

GE RJ45 Ports 8 x 10/100/1000 (optional modules available)
I/O ports 1 SRL / 2 USB

Dimensions & Enviroment

Mounting 1U rack mount kit included
Dimensions Width x Depth x Height (inches) 16.85 x 12.6 x 1.73
Dimensions Height x Width x Length (mm) 42.8 x 32 x 4.4 cm
Weight 18 lbs (8.17 kg)
Power supply 100-240 VAC
Power Consumption 75W
Heat Dissipation 256 BTU/h
Operating Temperature 32-104 F
Storage Temperature 14-158 F
Humidity 5-90% non-condensing
Operating Attitude 0-9843 ft at 95 F
Certifications CC EAL4+, FIPS 140-2, NRTL/C, CB, IPv6 Ready Gold (routing), WEEE, RoHS, REACH

Wireless Specification (XG Wireless only)
