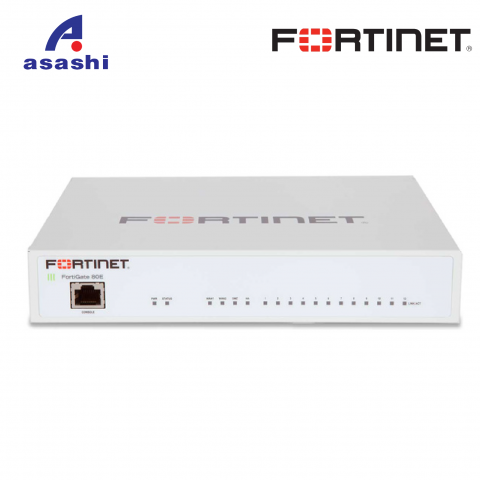

Fortinet Fortigate FG-80E
Fortinet Fortigate FG-80E
The Fortinet Enterprise Firewall Solution
The Fortinet Enterprise Firewall Solution delivers end-to-end network security with one platform, one network security operating system and unified policy management with a single pane of glass — for the industry’s best protection against the most advanced security threats and targeted attacks.
Specifications
| STT | Model | FG – 80E |
| 1 | System Performance | |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 4 / 4 / 4 Gbps | |
| Firewall Latency (64 byte UDP packets) | 3 μs | |
| Firewall Throughput (Packets Per Second) | 6 Mpps | |
| Concurrent Sessions (TCP) | 1,300,000 | |
| New Sessions/Second (TCP) | 30,000 | |
| Firewall Policies | 5,000 | |
| IPsec VPN Throughput (512 byte) | 2.5 Gbps | |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 | |
| Client-to-Gateway IPsec VPN Tunnels | 2,500 | |
| SSL-VPN Throughput | 200 Mbps | |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 | |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 135 Mbps | |
| SSL Inspection CPS (IPS, avg. HTTPS) | 135 | |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 95,000 | |
| Application Control Throughput (HTTP 64K) | 900 Mbps | |
| CAPWAP Throughput (HTTP 64K) | 920 Mbps | |
| Virtual Domains (Default / Maximum) | (10/10) | |
| Maximum Number of FortiSwitches Supported | 16 | |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 32 / 16 | |
| Maximum Number of FortiTokens | 500 | |
| High Availability Configurations | Active / Active, Active / Passive, Clustering | |
| 2 | System Performance — Enterprise Traffic Mix | |
| IPS Throughput | 450 Mbps | |
| NGFW Throughput | 360 Mbps | |
| Threat Protection Throughput | 250 Mbps | |
| 3 | Interfaces and Modules | |
| GE RJ45 Ports | 12x GE RJ45 Ports | |
| GE SFP Slots | 2x GE RJ45/SFP Shared Media Pairs | |
| Management/HA /DMZ Ports | 2x GE RJ45 DMZ/HA Ports | |
| USB Ports | 1 | |
| Console Port | 1 | |
| Storage | ||
| 4 | Dimensions and Power | |
| Height x Width x Length (inches) | 1.65 x 8.5 x 7 | |
| Height x Width x Length (mm) | 42 x 216 x 178 | |
| Weight | 2.65 lbs (1.2 kg) | |
| Form Factor | Desktop | |
| AC Power Supply | Powered by External DC Power Adapter, 100–240V AC, 50–60 Hz | |
| Power Consumption (Average / Maximum) | 18 W / 25 W | |
| Current (Maximum) | 100V AC / 0.25A, 240V AC / 0.11A | |
| Heat Dissipation | 85.3 BTU/h | |
| Redundant Power Supplies | ||
| 5 | Operating Environment and Certifications | |
| Operating Temperature | 32–104°F (0–40°C) | |
| Storage Temperature | -31–158°F (-35–70°C) | |
| Operating Altitude | Fanless 0 dBA | |
| Humidity | 10–90% non-condensing | |
| Noise Level | Fanless 0 dBA | |
| Compliance | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB | |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
Subscriptions
| SERVICE | ADVANCED THREAT PROTECTION | UNIFIED PROTECTION | ENTERPRISE PROTECTION | 360 PROTECTION |
| FortiManager Cloud | o | |||
| FortiAnalyzer Cloud | o | |||
| SD-WAN Cloud Assist Monitoring | o | |||
| SD-WAN One Click VPN Overlay | o | |||
| FortiConverter Service | o | |||
| Industrial Security Service | o | o | ||
| Security Rating | o | o | ||
| CASB | o | o | ||
| Anti-Spam | o | o | o | |
| Web Filtering | o | o | o | |
| Advanced Malware Protection | o | o | o | o |
| IPS | o | o | o | o |
| FortiCare + Application Control | o | o | o | o |
Specs
System Performance
| Firewall throughput | 4/4/4 Gbps |
| Firewall Latency | 3 us |
| Concurrent connections | 1,300,000 |
| New connections/sec | 30,000 |
| IPS throughput | 450 Mbps |
| NGFW Throughput | 360 Mbps |
| Threat Protection Throughput | 250 Mbps |
| Firewall Policies | 5000 |
| IPSec VPN throughput | 2.5 Gbps |
| Gateway-to-Gateway IPSec VPN Tunnels | 200 |
| Client-to-Gateway IPSec VPN Tunnels | 2500 |
| SSL VPN Throughput | 200 Mbps |
| Concurrent SSL VPN Users | 200 |
| SSL Inspection Throughput | 135 Mbps |
| SSL Inspection CPS | 135 |
| SSL Inspection Concurrent Session | 95000 |
| Application Control Throughput | 900 Mbps |
| CAPWAP Throughput | 920 Mbps |
| Virtual Domains | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 16 |
| Maximum Number of FortiAPs | 32 / 16 |
| Maximum Number of FortiTokens | 500 |
| Maximum Number of Registered FortiClients | 200 |
| High Availability Configurations | Active/Active, Active/Passive, Clustering |

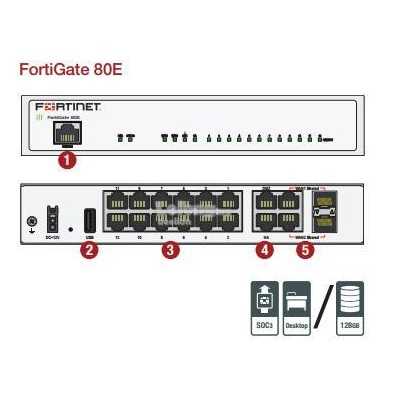

Physical interfaces
| GE RJ45 Ports | 12 x GE RJ45 |
| GE RJ45 WAN Ports | 2 x GE RJ45 DMZ Ports, 2 x GE RJ45 HA Ports |
| GE SFP Slots | 2 x GE RJ45 SFP Shared Media Pairs |
| I/O ports | 1 Console (RJ45) / 1 USB |
Dimensions & Enviroment
| Mounting | Desktop |
| Dimensions Width x Depth x Height (inches) | 1.65 x 8.5 x 7 |
| Dimensions Height x Width x Length (mm) | 42 x 216 x 178 |
| Weight | 2.65 lbs |
| Power supply | 100-240 VAC |
| Maximum Current | 100VAC/0.25A, 240VAC/0.11A |
| Power Consumption | 18W/25W |
| Heat Dissipation | 85.30 BTU/h |
| Operating Temperature | 32-104 F |
| Storage Temperature | -31-158 F |
| Humidity | 10-90% non-condensing |
| Noise Level | Fanless 0 dBA |
| Operating Attitude | Up to 16404 ft (5000m) |
| Regulatory Compliance | FCC Part 15B, Class B, CE, RCM, VCCI, UL/cUL, CB, BSMI |
| Certifications | ICSA Labs: Firewall, IPSec, IPS, Antivirus, SSL-VPN |
