Overview
- Bài viết này cung cấp các bước cấu hình giao thức định tuyến BGP cho thiết bị tường lửa Sophos XG.
Tình huống và sơ đồ mạng
- Chúng ta sẽ thực hiện cấu hình giao thức định tuyến BGP giữa hai thiết bị tường lửa Sophos XG bằng sơ đồ mạng như sau.
![](https://uploads.thegioifirewall.com/2018-12-14_15-24-54.jpg)
Các bước cấu hình trên Head Office (H.O)
- Nhấp Routing > BGP và điền các thông số như hình sau.
![](https://uploads.thegioifirewall.com/1-26-1024x696.jpg)
- Nhấp Administration > Device Access. Bật Dynamic Routing cho WAN Zone và click Apply.
![](https://uploads.thegioifirewall.com/2-24-1024x325.jpg)
Các bước cấu hình trên Branch Office (B.O)
- Nhấp Routing > BGP và điền các thông số như hình sau.
![](https://uploads.thegioifirewall.com/3-22-1024x662.jpg)
- Nhấp Administration > Device Access. Bật Dynamic Routing cho WAN Zone và click Apply.
Kiểm tra kết quả
- Nhấp Routing > Information. Phía dưới BGP, nhấp vào muỗi tên thả xuống ở Neighbors,Routes or Summary để xem kết quả.
Head Office (H.O)
![](https://uploads.thegioifirewall.com/4-18.jpg)
![](https://uploads.thegioifirewall.com/5-14.jpg)
![](https://uploads.thegioifirewall.com/6-14.jpg)

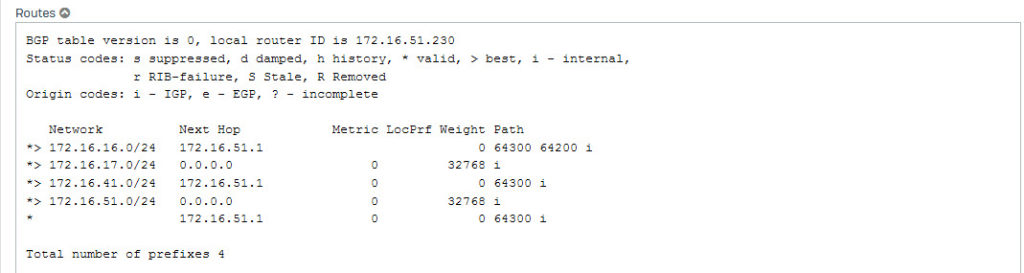

Branch Office (B.O)
![](https://uploads.thegioifirewall.com/7-9.jpg)
![](https://uploads.thegioifirewall.com/8-7.jpg)
![](https://uploads.thegioifirewall.com/9-6-1024x273.jpg)
